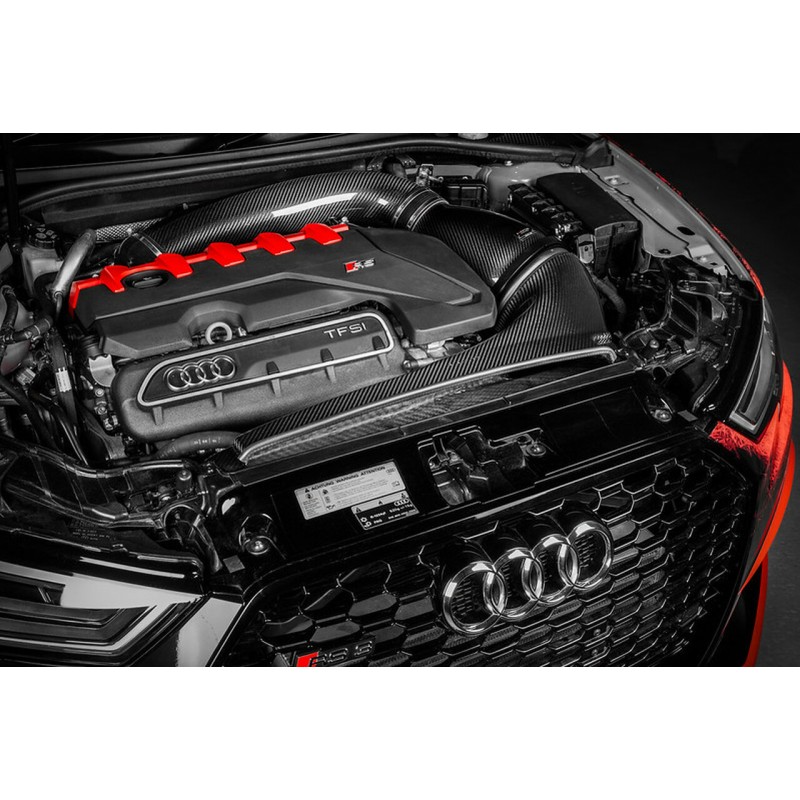

With the 8V RS3 Gen 2 and TTRS 8S platforms being widely used for high power builds, we have developed a groundbreaking intake system to support even those exceeding the 1000whp mark. This stage 3 intake system has been developed to offer the highest possible flow rate whilst maintaining the lowest intake temperatures possible. Each component has been designed to provide the turbo with a smooth and free flowing path. The intake tube has an internal diameter of 103mm or just over 4″ and has a smooth curvature from the filter housing all the way to the turbo inlet. The filter itself has been specifically designed for this intake and has a huge outer diameter of 210mm or 8.3″ with a filtration surface area of over 130,000mm^2. The patented Venturi housing has been designed to provide the maximum internal volume possible for the RS3 engine bay space available and provides laminar flow to the turbo tube. Finally the duct seals the filter opening to the front slam panel but is not restricted by just the stock entry feed. We have lifted the front of the duct to now provide an extra opening behind the hood which is equivalent to an extra 7″ diameter hole for the intake to draw from. The resulting system has the capability of flowing 840 CFM at 28″ H2O while keeping intake temperatures at a minimum with the sealed design.

The Eventuri Difference

The 8V RS3/TTRS Eventuri system uses our Patented Carbon fibre Housings which provide an aerodynamically efficient airflow path from the filter to the turbo tubing. Not just another cone filter with a heat shield but a unique design which invokes the Venturi affect.

Flow Bench Testing

We conducted flow rate tests using a Superflow SF-1020 to measure the maximum flow rate possible at a pressure drop of 28” H2O. Tests were done on the same day in controlled conditions using the same test jig for each system. We tested our full intake system against the stock airbox system. The results show just how restrictive the stock airbox is, which we have managed to improve by up to 58% in maximum possible flow rate. Importantly this has been achieved with a sealed intake system so the intake temperatures will also be maintained at a minimum.

Notes:
- May not fit with certain Aftermarket Diverter/Dump Valves
